Elizabeth River Lift Bridge (Norfolk & Portsmouth Belt Line Railroad)

Virginia

Built 1958
Total Length 1,150' (1958)
Main Span 385' (1958)
Status Active

The Norfolk & Portsmouth Belt Line Railroad crossing, a through-truss lift bridge built in 1958, connects Portsmouth and Chesapeake, Virginia.

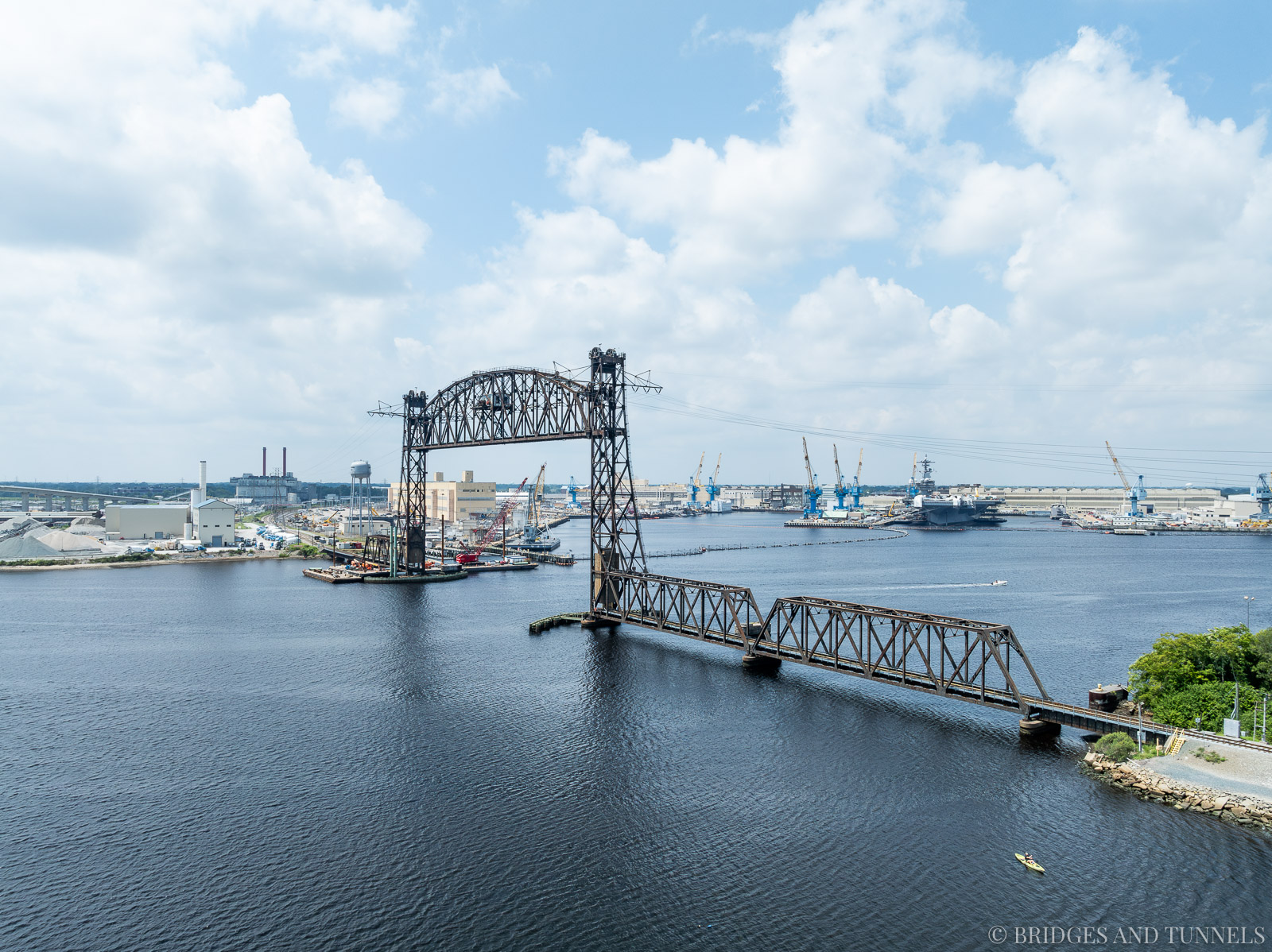

The Norfolk & Portsmouth Belt Line Railroad crossing over the South Branch of the Elizabeth River is a through-truss lift bridge connecting Portsmouth and Chesapeake, Virginia. The structure includes a Warren through-truss lift span and three Warren through-truss approach spans.

The original crossing over the Elizabeth River for the Norfolk & Portsmouth Belt Line Railroad, with a swing span main span and two approach through spans, was built in 1898. [1]

The Hampton Roads Maritime Association had advocated for a new bridge for many years to replace the swing span. [1] The old bridge had a narrow horizontal clearance and was misaligned with a nearby highway bridge, making navigation difficult for vessels in the channel. [1][2][3] After planning efforts were concluded, the Secretary of the Army granted final approval for the bridge. [1] Congress had already allocated $800,000 for the initial phase, with the federal government covering 85% of the project’s cost.

In November 1955, the Lang Construction Company of Hampton was awarded a $388,489 contract to build foundation piers and approaches for a new $2,690,000 railroad bridge. [1] The superstructure contract went to the American Bridge Division of the U.S. Steel Corporation, [3] while the Carpenter Construction Company of Norfolk won a $134,542 contract in January 1958 to build protective fenders for the new bridge and dismantle the old crossing. [4]

The new lift span was installed on June 30. [5]

The completed bridge featured a 378-foot-long lift span, providing a 300-foot horizontal and 135-foot vertical clearance. [1][2][3] It opened in the fall of that year. [4]

Dimensions & Classification

Structural FormMovable — Vertical lift
Through Truss — Warren
Primary MaterialSteel
Total Length1,150' (1958)
Main Span385' (1958)
Vertical Navigational Clearance135' (1958)
BuildersAmerican Bridge Co. (superstructure)
Carpenter Construction Co. and Lang Construction Co (substructure)

Leave a Comment

Spotted an error — a date, name, or fact? Send a correction and I'll review it.

References for this location, in MLA format.

  1. “Lang Expected To Get Initial Rail Span Work.” Ledger-Star, 18 Nov. 1955, p. 14.
  2. Harrell, Charlton. “Chip on His Shoulder Weighs Tons.” Ledger-Star, 24 Jun. 1958, p. 15.
  3. “Study of Current Precedes Floating of Lift Span.” Virginian-Pilot, 15 Jun. 1958, p. 24.
  4. “Belt Line Bridge Bids Submitted.” Ledger-Star, 24 Jan. 1958, p. 10.
  5. “Notice.” Ledger-Star, 25 Jun. 1958, p. 14.
