Shady Grove Road Bridge

The Shady Grove Road Bridge carries Shady Grove Road over the Russell Fork San Gabriel River in Burnet County, Texas.

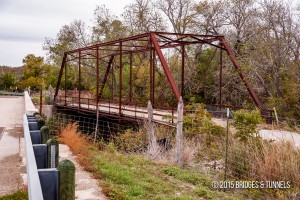

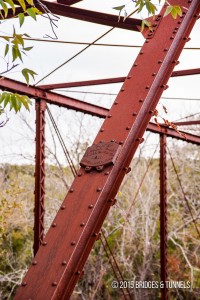

The pin-connected Pratt through truss was constructed in 1911 by the Missouri Valley Bridge & Iron Company of Leavenworth, Kansas, and bypassed with a new span in 2005.


Details

  • State: Texas
  • Route: Shady Grove Road
  • Status: Abandoned or Closed
  • Type: Pratt Through Truss
  • Total Length: 135 feet
  • Main Span Length: 60 feet
  • Spans:
  • Deck Width: 15.5 feet
  • Roadway Width: 0
  • Height of Structure: 0
  • Above Vertical Clearance: 15 feet
  • Navigational Clearance:
