A steel arch has carried a road over the spillway of the New Croton Dam in Westchester County, New York, since 1905, when the Baltimore Bridge Company built one for $40,500 to serve the dam’s construction. Road salt and spillway spray destroyed it, and a simplified Corten steel arch replaced it in 1975, built under conditions so poor that water pooled inside the arch ribs before they could be welded. That bridge failed within thirty years: its arch bases displaced as much as fourteen inches, and when crews arrived to begin a rehabilitation they found the movement had grown worse still. The bridge was closed immediately and replaced on an accelerated schedule, the new design returning to the spandrel columns of the 1905 structure. It was finished in 2005 at a cost of $4.6 million.
History
The Croton Dam Spillway Bridge is a steel arch carrying a road over the spillway of the New Croton Dam in Westchester County, New York. Three bridges have stood at the site, the present one completed in 2005.
The 1905 Bridge
The construction of the New Croton Dam in the early twentieth century included an open-spandrel steel arch over the spillway. 1 It was built to give access for the construction and maintenance of the dam, and became a public road afterward. 5 The design was not settled at the outset, a steel arch being chosen in the end over a modified Pennsylvania through truss. 2 A contract of $40,500 5 was awarded to the Baltimore Bridge Company on December 6, 1904, 3 and the bridge was finished by the end of 1905. 5
The 1975 Bridge
Road salt and the spray of the spillway wore the original structure away, and it was replaced in 1975 by a simplified arch built of Corten steel. 2 5 Where the 1905 bridge had carried the weight of the roadway to the abutments through its spandrels, the new design concentrated the load at the center. The work was difficult. Spray from the spillway made poor conditions for the men, and water collected inside the box sections of the arch ribs before they could be welded. 5
An inspection by Hardesty & Hanover afterward found a number of faults. 5 The bridge had inadequate seismic capacity for want of anchorage at the arch bases, together with poor deck-bearing details. The bearing plates had displaced upward at the skewbacks, the arch bases moving as much as fourteen inches. Welds had broken and separated, and there was minor corrosion.
Replacement
Rehabilitation seemed possible at first. 5 Longitudinal stiffeners welded to the arch ribs would restore the original load capacity and remove concerns about web buckling, though they would be costly and difficult to install and would create further places for moisture and debris to gather. The sliding bearings could be replaced with multi-rotational bearings at deck level, the arch bases secured to improve seismic performance, and the welds repaired.
The contract for that work had already been awarded when crews reaching the arch bases to take field measurements for the anchor bases found that the bases had displaced significantly further since the inspection. 5 An emergency inspection followed, and the bridge was closed at once.
An accelerated replacement was begun instead, designed to resemble the 1905 bridge but built to modern materials and standards. 2 5 Hardesty & Hanover completed the design and obtained every permit and approval within a compressed schedule of three months. 5 The plan returned to spandrel columns to distribute the deck loads and prevent the arch bases from displacing, with lateral seismic restraints at deck level and new anchorages at the skewbacks.

Kiewit Constructors took the replacement contract and began work in August 2003. 4 5 Fieldwork went forward while the shop drawings were prepared and High Steel Structures began fabricating the steel. The new bridge was completed in 2005 2 at a cost of $4.6 million. 4 5
The Road Over the Dam
That same year the New York City Department of Environmental Protection proposed to close the road along the top of the dam permanently, a response to the attacks of September 11, 2001. Pedestrians and emergency vehicles would retain access, and motor traffic would be barred. A temporary barrier was installed and replaced with permanent barriers when a renovation of the dam was completed in 2011.
Structure

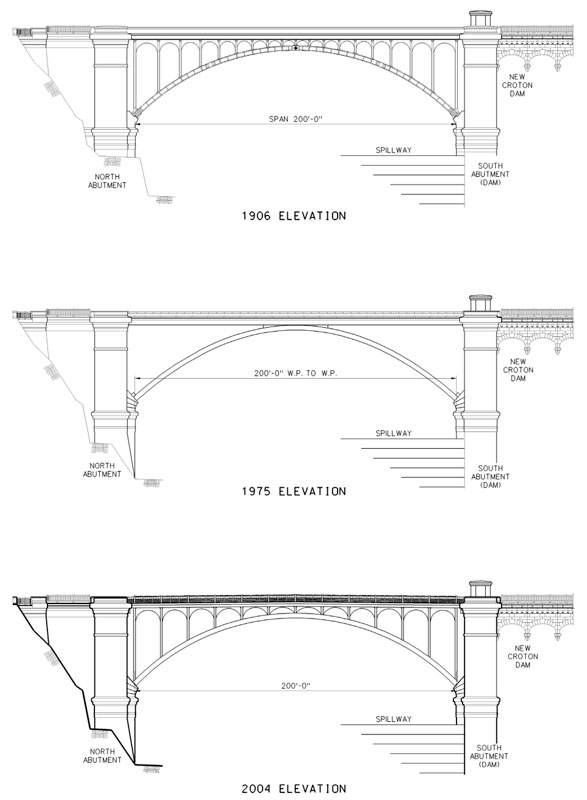

Dimensions & Classification
| Structural Form | Arch — Steel through |
|---|---|
| Primary Material | Steel |
| Total Length | 200; (1906); 200' (1975); 208' (2005) |
| Deck Width | 20' (1906); 22' (1975); 23'6" (2005) |
| Roadway Width | 19' (1906); 19' (1975); 20'4" (2005) |
| Builders | Kiewit Constructors High Steel Structures |
