About Goddard Covered Bridge

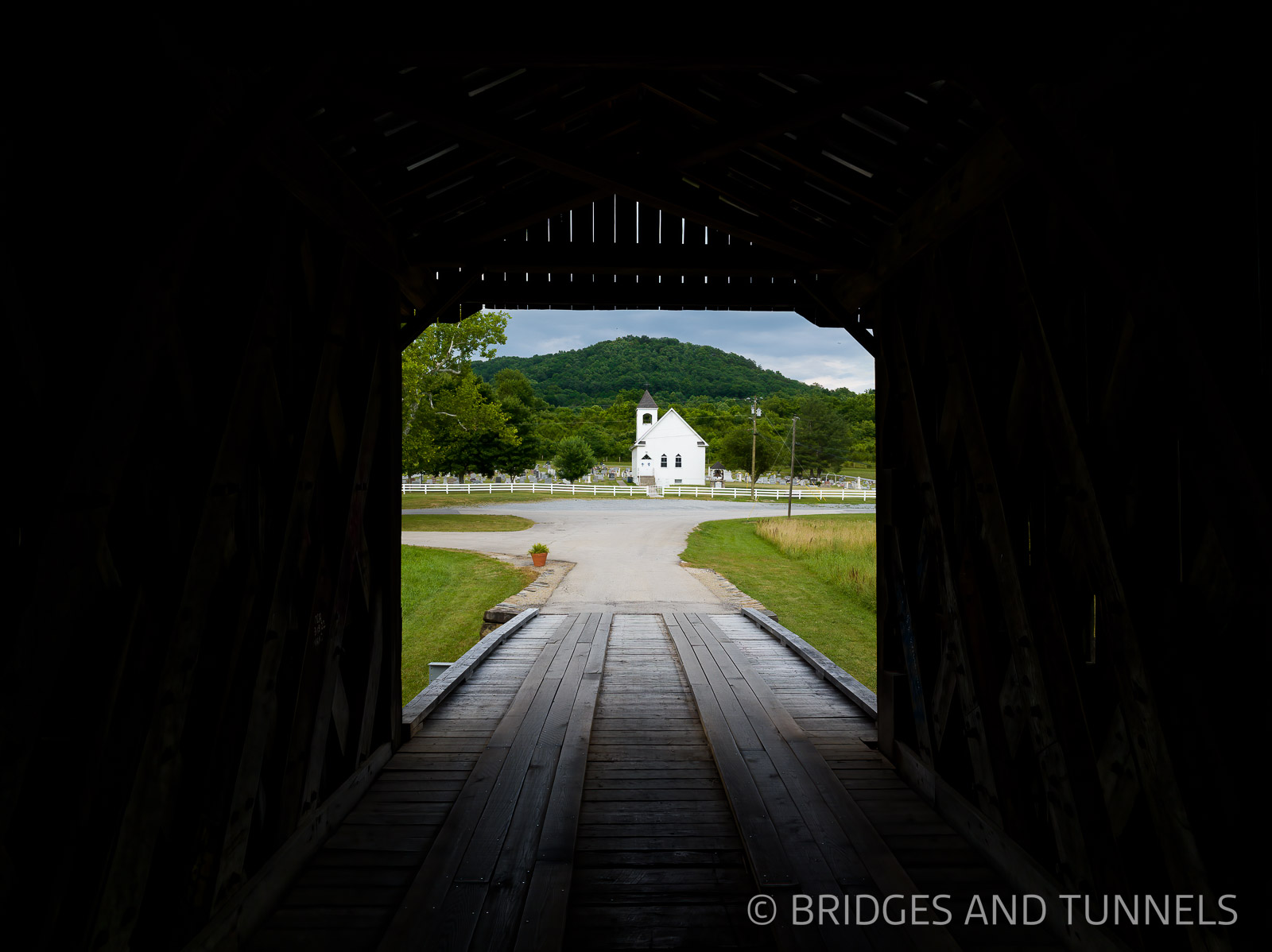

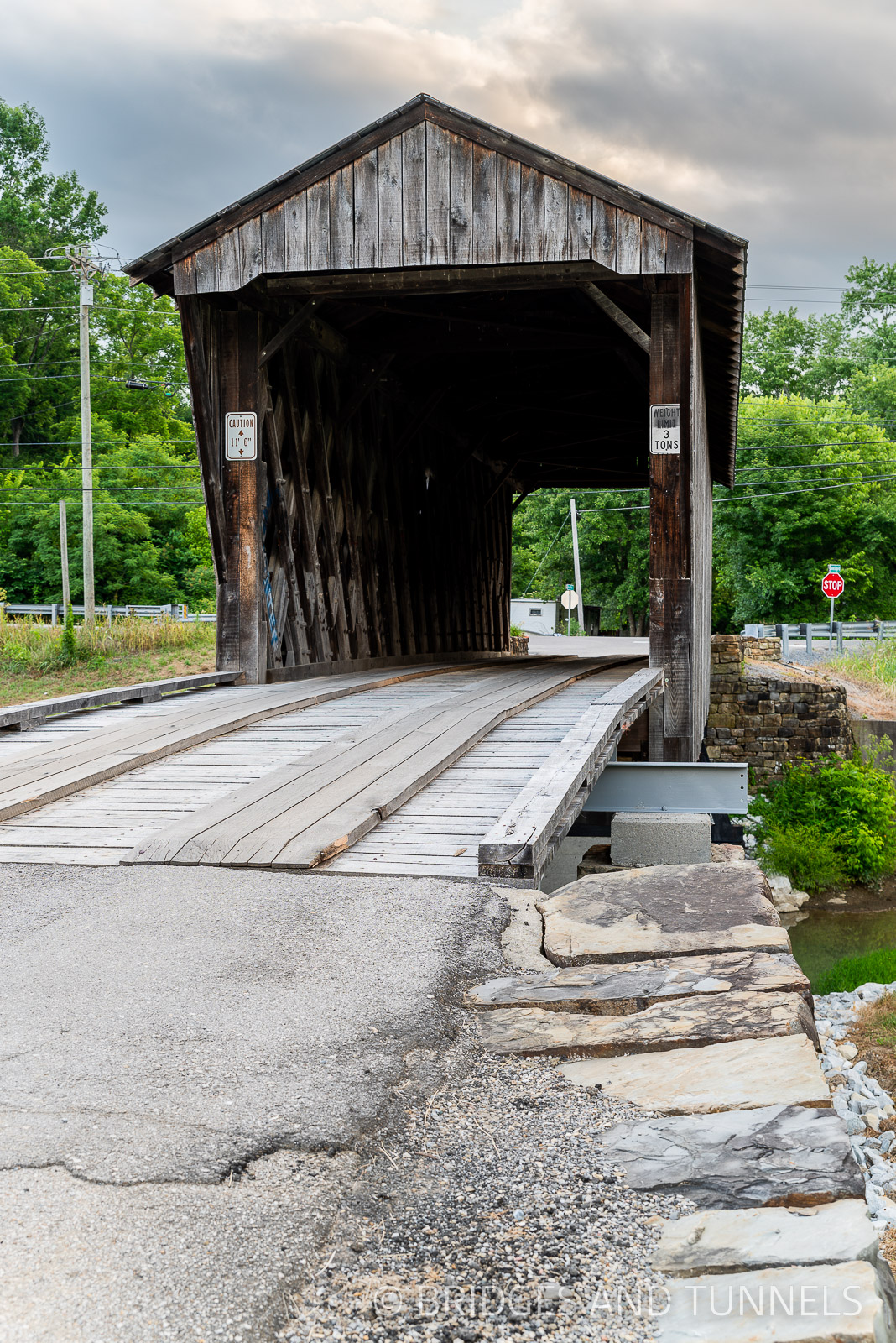

Constructed by Joseph Goddard at an unknown time, its design was based on the 1820 lattice design of Ithiel Town. 1 It was originally located one mile south of Goddard and moved to its present location in 1933 when KY Route 32 was rebuilt. Because its original 63 feet span did not cross the creek entirely at the new site, a 32-foot approach was added. The exposed exterior wood was painted white to blend in with the adjoining white church and fence.

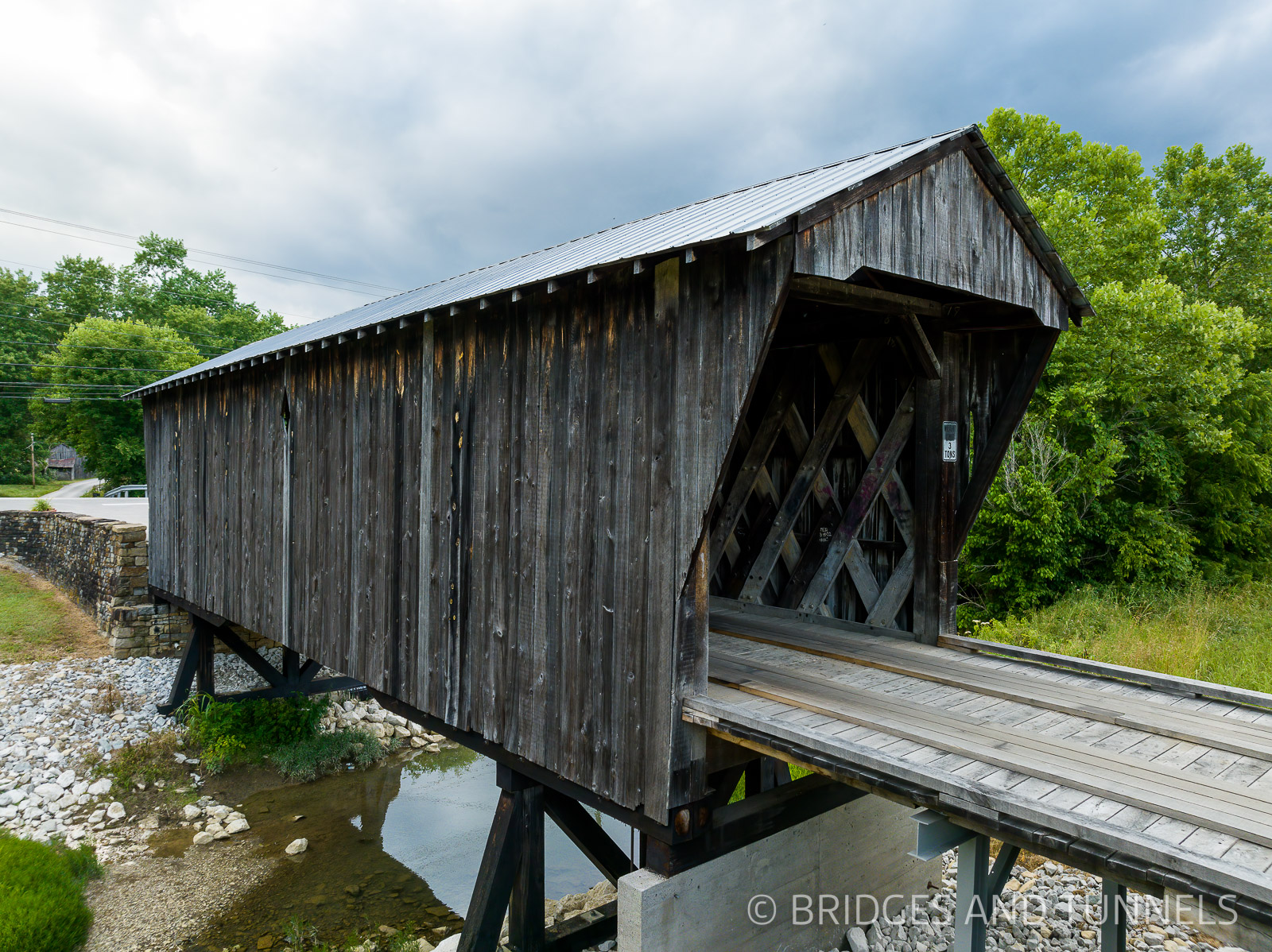

Steel braces were later added near the abutments to provide additional support. 1 The Goddard Covered Bridge was restored in 1968 under the supervision of Louis “Stock” Bower of the Bower Bridge Company at the cost of $6,000 when some lateral bracing, siding, and roofing were replaced. 1 2
Structure
Dimensions & Classification
| Structural Form | Through Truss — Town lattice |
|---|---|
| Primary Material | Timber |
| Total Length | 92.4 feet |
| Main Span | 63 feet |
| Deck Width | 12.4 feet |
| Total Height of Structure | 12.8 feet |
Photographs
Constructed by Joseph Goddard at an unknown time, its design was based on the 1820 lattice design of Ithiel Town. 1 It was originally located one mile south of Goddard and moved to its present location in 1933 when KY Route 32 was rebuilt. Because its original 63 feet span did not cross the creek entirely at the new site, a 32-foot approach was added. The exposed exterior wood was painted white to blend in with the adjoining white church and fence.
Steel braces were later added near the abutments to provide additional support. 1 The Goddard Covered Bridge was restored in 1968 under the supervision of Louis “Stock” Bower of the Bower Bridge Company at the cost of $6,000 when some lateral bracing, siding, and roofing were replaced. 1 2
Suggest a Correction
Spotted an error — a date, name, or fact? Send a correction and I'll review it.
Sources & Citations
References for this location, in MLA format.
- Johnson, John. White. Goddard "White" Bridge, United States Department of the Interior, 1975.
- White, Vernon. “Covered Bridges: Focus on Kentucky.” Kentucke Imprints, 1985, pp. 51-54.

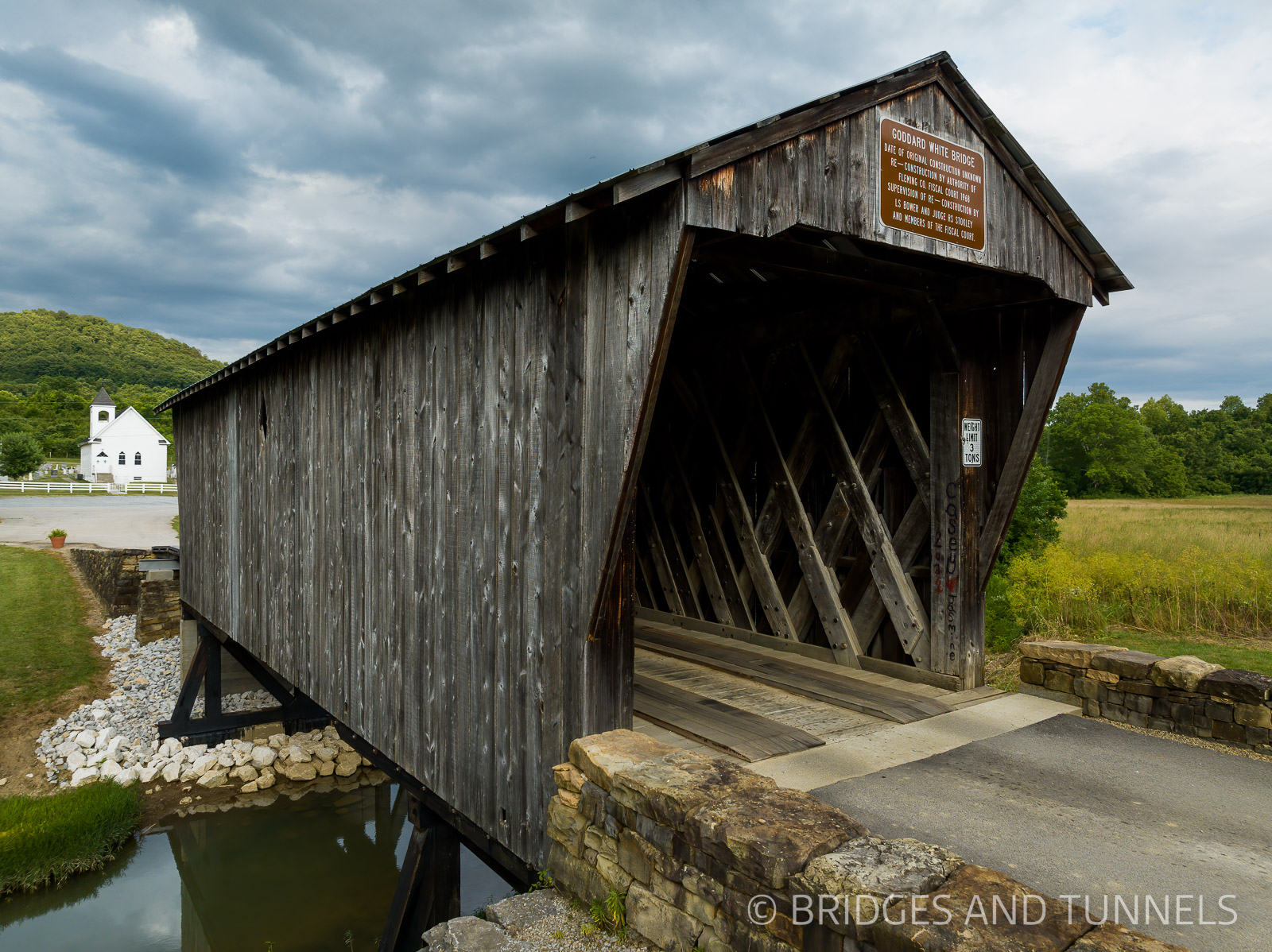

![Goddard Covered Bridge [June 2022] Goddard Covered Bridge](https://i0.wp.com/bridgestunnels.com/wp-content/uploads/2022/08/20220626-DJI_0814-Edit-Edit.jpg?fit=1600%2C1198&quality=72&strip=all&ssl=1)

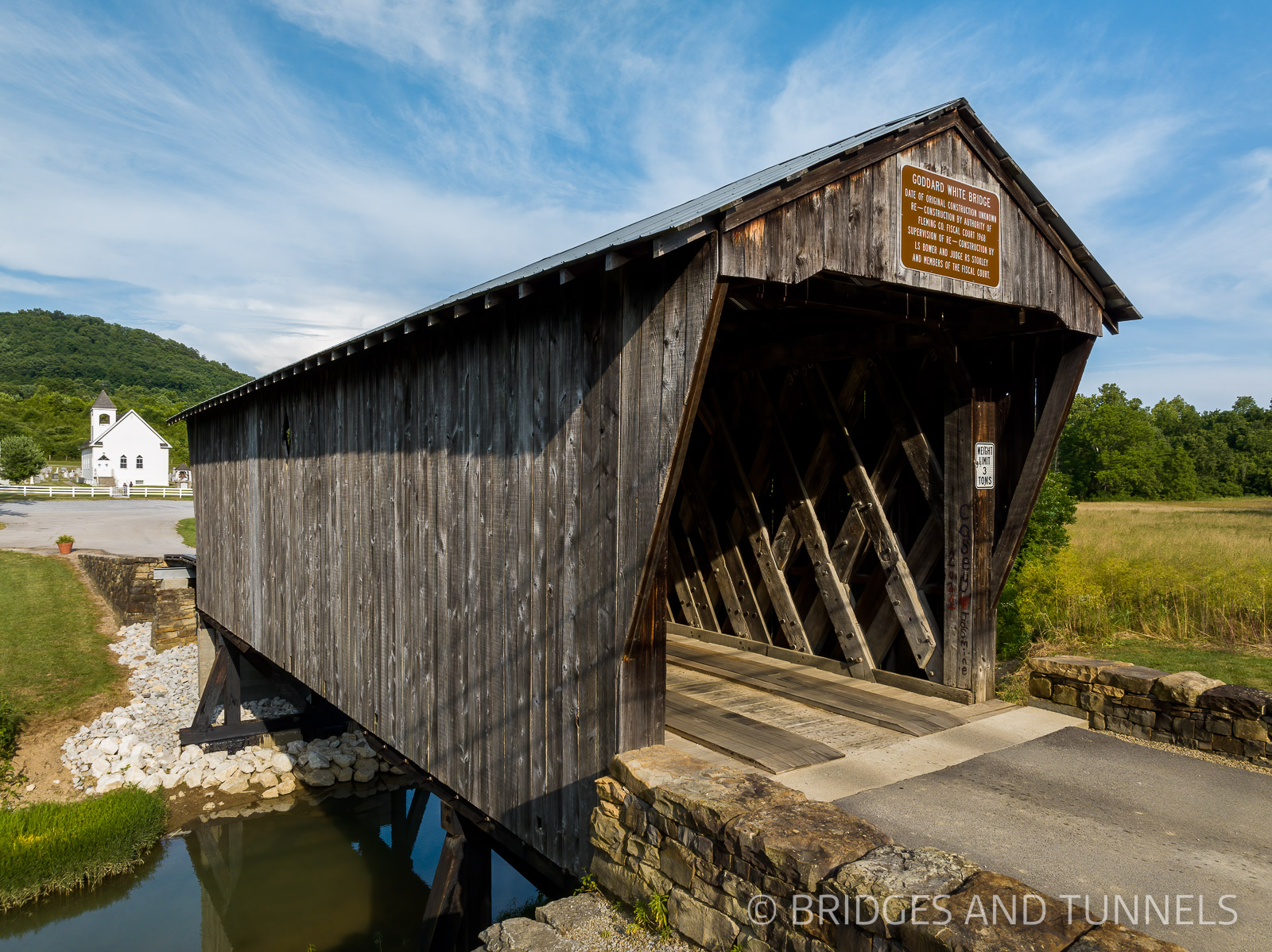

![Goddard Covered Bridge [June 2022] Goddard Covered Bridge](https://i0.wp.com/bridgestunnels.com/wp-content/uploads/2022/08/20220626-DJI_0736-Edit-Edit.jpg?fit=1600%2C1198&quality=72&strip=all&ssl=1)
![Goddard Covered Bridge [June 2022] Goddard Covered Bridge](https://i0.wp.com/bridgestunnels.com/wp-content/uploads/2022/08/20220626-DJI_0719-Edit-Edit.jpg?fit=1600%2C1198&quality=72&strip=all&ssl=1)
![Goddard Covered Bridge [June 2022] Goddard Covered Bridge](https://i0.wp.com/bridgestunnels.com/wp-content/uploads/2022/08/20220626-DJI_0796-Edit.jpg?fit=1600%2C1198&quality=72&strip=all&ssl=1)

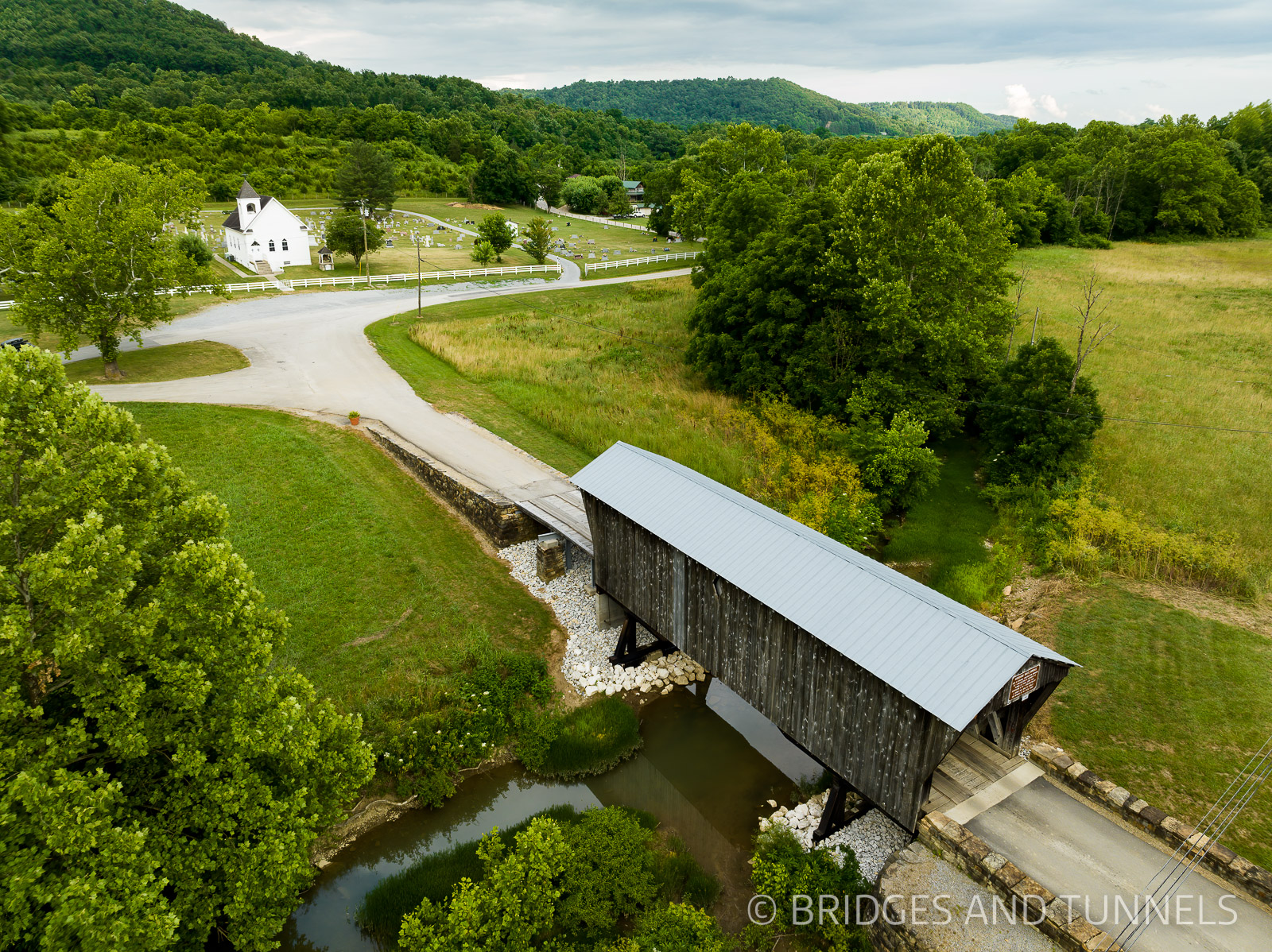

![Goddard Covered Bridge [June 2022] Goddard Covered Bridge](https://i0.wp.com/bridgestunnels.com/wp-content/uploads/2022/08/20220626-DJI_0851-Edit.jpg?fit=1600%2C1198&quality=72&strip=all&ssl=1)

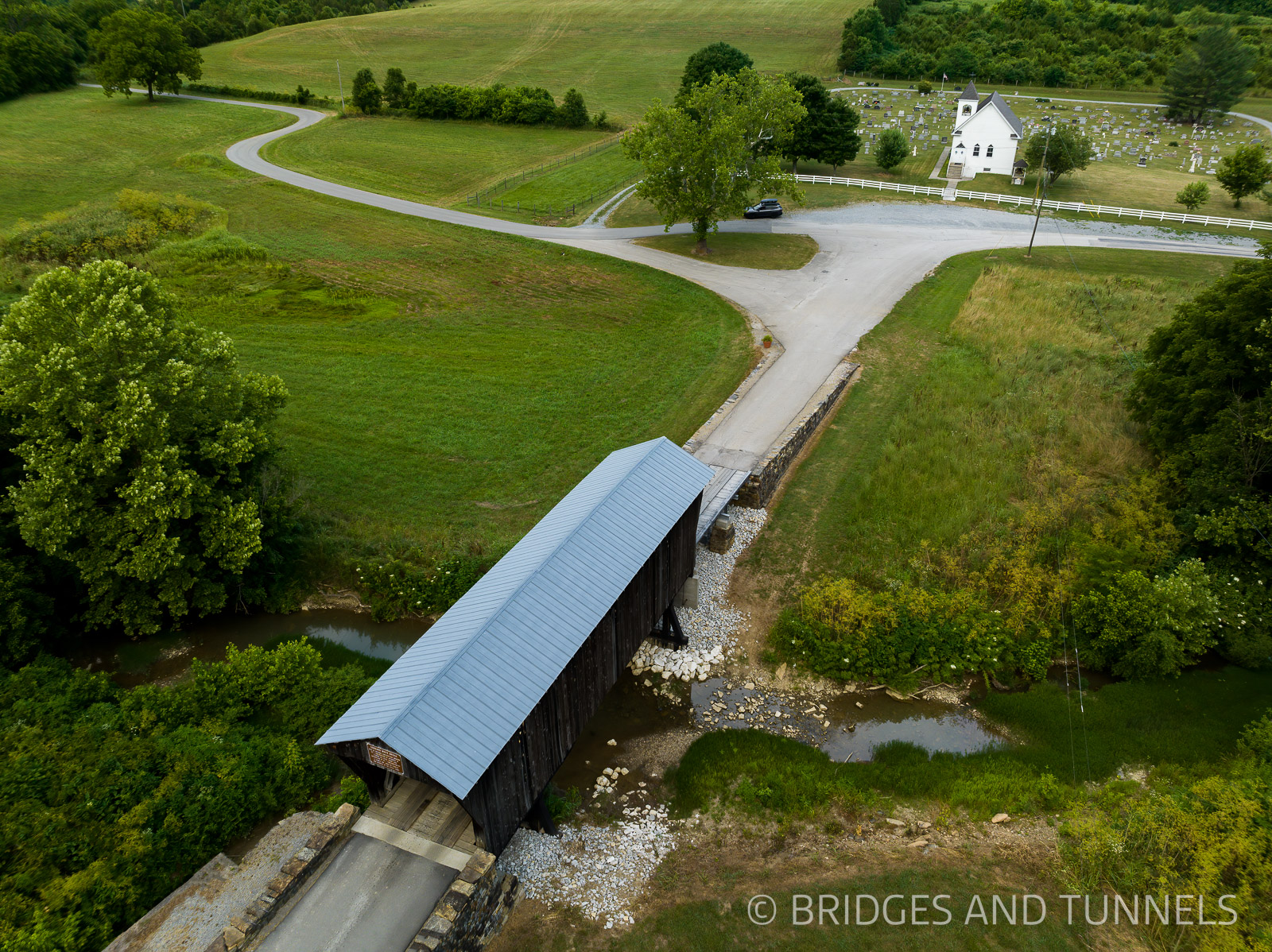

![Goddard Covered Bridge [June 2022] Goddard Covered Bridge](https://i0.wp.com/bridgestunnels.com/wp-content/uploads/2022/08/20220626-DJI_0772-Edit-Edit.jpg?fit=1600%2C1198&quality=72&strip=all&ssl=1)
![Goddard Covered Bridge [June 2022] Goddard Covered Bridge](https://i0.wp.com/bridgestunnels.com/wp-content/uploads/2022/08/20220626-_DSC3817-HDR.jpg?fit=1068%2C1600&quality=72&strip=all&ssl=1)
![Goddard Covered Bridge [June 2022] Goddard Covered Bridge](https://i0.wp.com/bridgestunnels.com/wp-content/uploads/2022/08/20220626-DJI_0839-Edit.jpg?fit=1600%2C1198&quality=72&strip=all&ssl=1)
![Goddard Covered Bridge [June 2022] Goddard Covered Bridge](https://i0.wp.com/bridgestunnels.com/wp-content/uploads/2022/08/20220626-_DSC3789-HDR.jpg?fit=1600%2C1068&quality=72&strip=all&ssl=1)

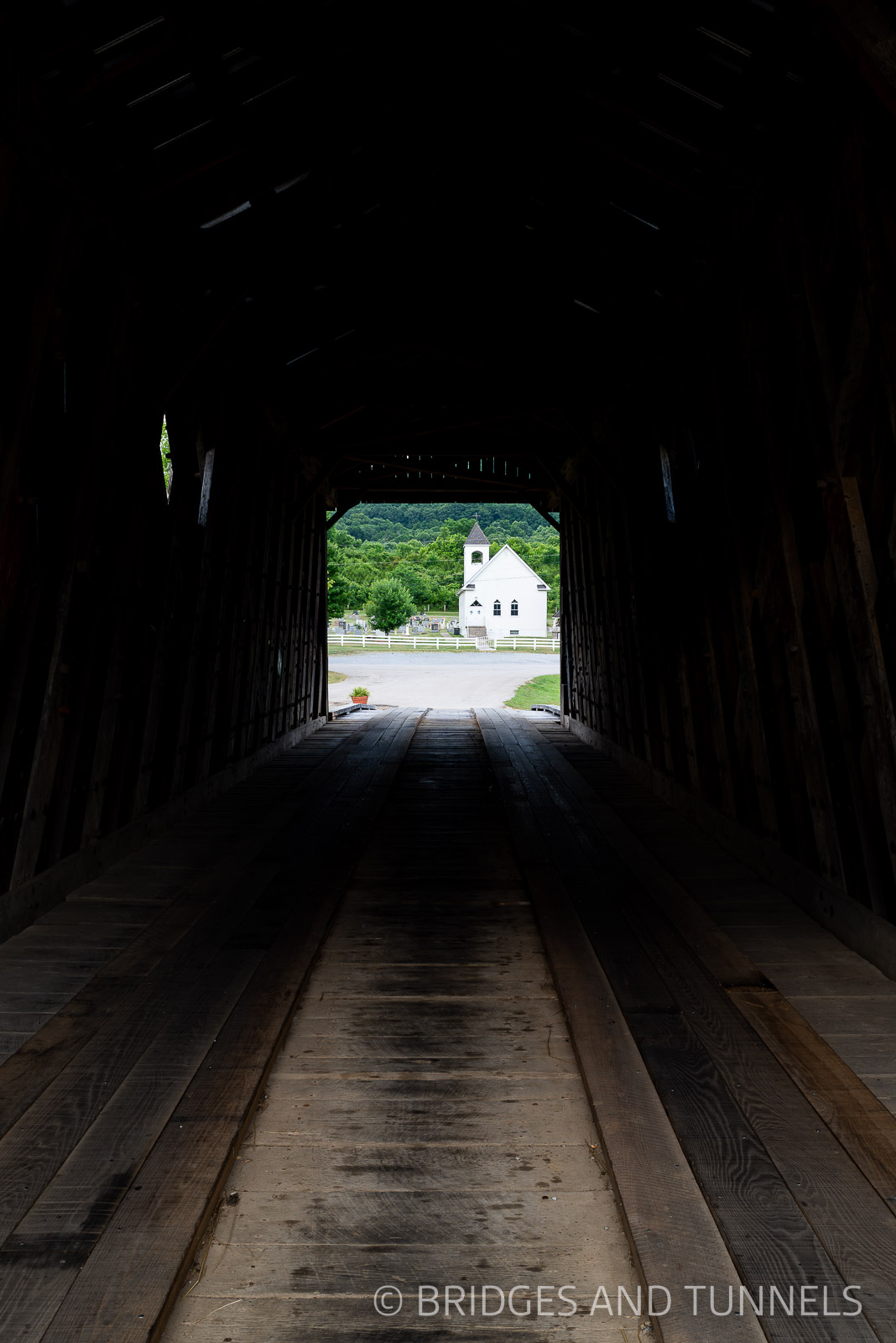

![Goddard Covered Bridge [June 2022] Goddard Covered Bridge](https://i0.wp.com/bridgestunnels.com/wp-content/uploads/2022/08/20220626-_DSC3796-HDR.jpg?fit=1068%2C1600&quality=72&strip=all&ssl=1)
![Goddard Covered Bridge [June 2022] Goddard Covered Bridge](https://i0.wp.com/bridgestunnels.com/wp-content/uploads/2022/08/20220626-_DSC3803-HDR.jpg?fit=1068%2C1600&quality=72&strip=all&ssl=1)

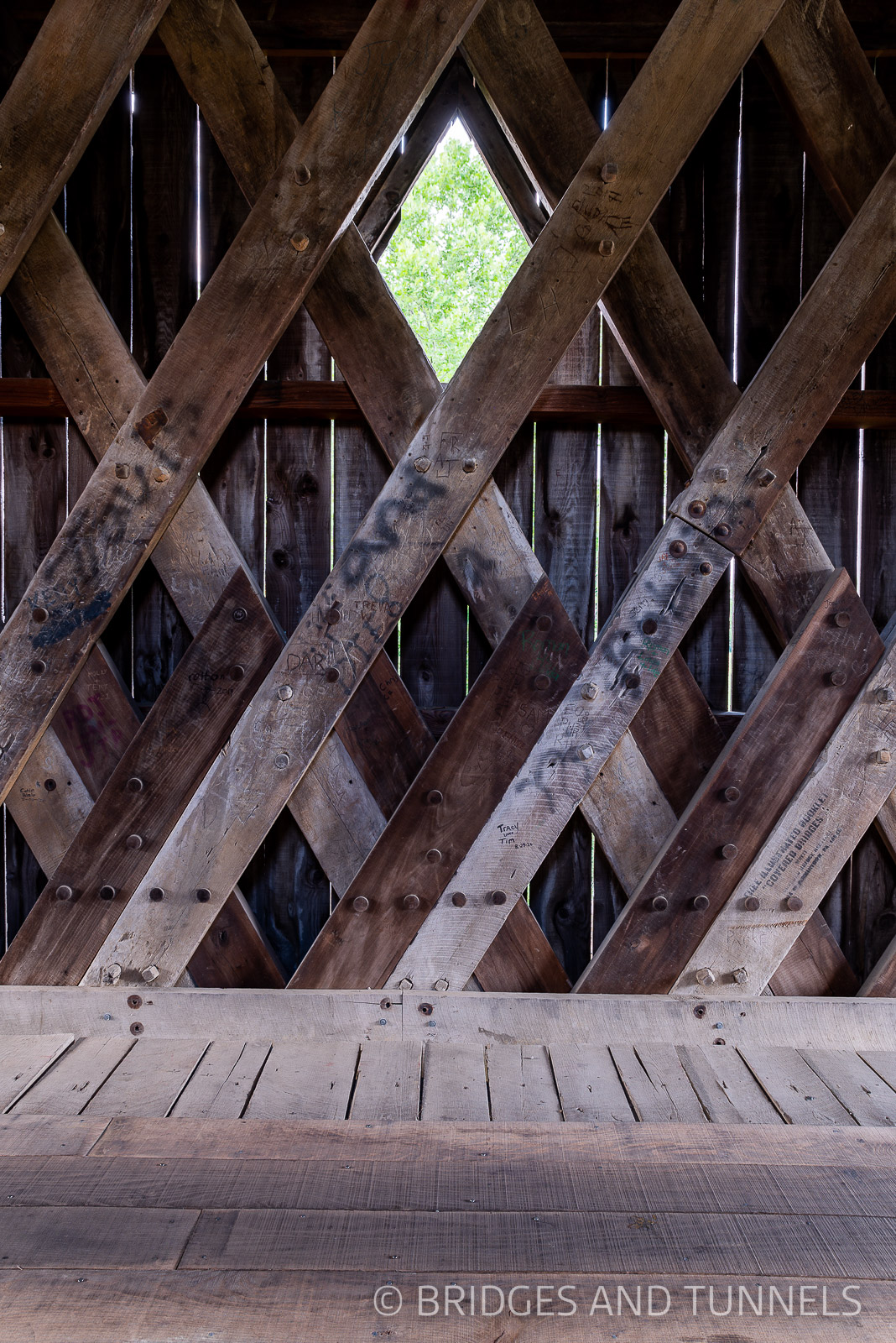

![Goddard Covered Bridge [June 2022] Goddard Covered Bridge](https://i0.wp.com/bridgestunnels.com/wp-content/uploads/2022/08/20220626-_DSC3810-HDR.jpg?fit=1068%2C1600&quality=72&strip=all&ssl=1)

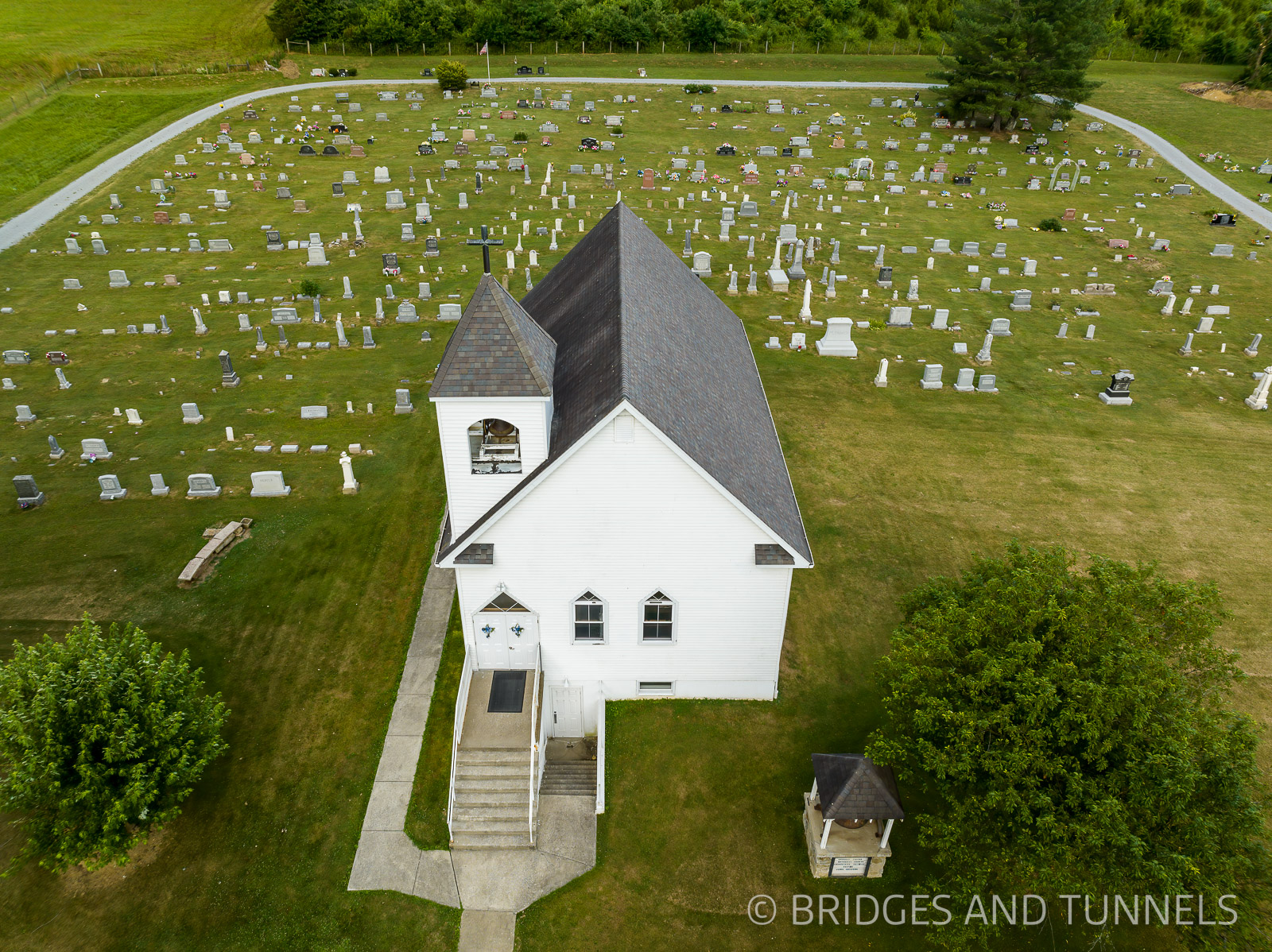

![Goddard White Church [June 2022] Goddard Covered Bridge](https://i0.wp.com/bridgestunnels.com/wp-content/uploads/2022/08/20220626-DJI_0801-Edit-Edit.jpg?fit=1600%2C1198&quality=72&strip=all&ssl=1)
