Ironton-Russell Bridge

Ironton-Russell Bridge

Published February 28, 2020 By Sherman Cahal

The Ironton-Russell Bridge is a former cantilevered truss crossing of the Ohio River between Ironton, Ohio and Russell, Kentucky. The circa 1922 bridge was demolished in 2016.

The Ironton-Russell Bridge is a former cantilevered truss crossing of the Ohio River between Ironton, Ohio and Russell, Kentucky. The circa 1922 bridge was demolished in 2017 and replaced with the Oakley Clark Collins Memorial Bridge.

History

The Ironton-Russell Bridge was constructed by the Ironton-Russell Bridge Company and opened in 1922 as the first highway crossing over the Ohio River between Parkersburg, West Virginia and Cincinnati, Ohio. 11 The company levied a toll for both motorists and pedestrians. The State of Ohio Bridge Commission purchased the bridge for $1.35 million in 1963 and maintained the tolls until the Commission was taken over by the Ohio Department of Transportation (ODOT). ODOT removed the tolls shortly thereafter.

By the 1990s, the Ironton-Russell Bridge was burdened with very high maintenance costs; it was also functionally obsolete. It had ten-foot travel lanes, two 90° curves, and a metal grate driving deck. 11 A weight limit was placed on the bridge in an effort to extend the life of the bridge in 1991. 25 By 1999, over 11,000 vehicles were driving across the bridge daily. 6

Stress gauges on 36 steel members were installed in October to assist in determining if the weight limit should be lowered. 9 The monitoring, conducted by the University of Cincinnati Infrastructure Institute, suggested that the weight limit on the bridge be lowered from 40 tons to 26 tons to reduce stress and fatigue on the bridge. 12

The Ironton-Russell Bridge underwent structural repairs at the cost of $1 million in mid-2001, which required the reinforcement of bridge joints with metal plates and rods due to corrosion. 16 The bridge deck was further repaired in 2002. 18

ODOT announced in January 2002 that the crossing would be closed to all traffic when air temperatures were below -5°F as the steel on the bridge became more brittle and susceptible to stress and cracking at extreme temperatures. 17 The width of vehicles was restricted to 7.6-feet in May 2008 to prohibit trucks from utilizing the bridge, although buses and emergency vehicles were declared exempt. 25

In mid-2008, half of the bridge’s metal grate driving surface was replaced, and damaged bearings and connections were retrofitted with replacements or supplements at the cost of $1.1 million. 4

Demolition of the Ironton-Russell Bridge began in late-January 2017 31 after the Oakley Clark Collins Memorial Bridge opened in November 2016.

Gallery

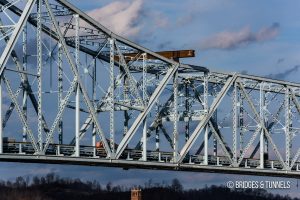

View on December 26, 2016 with steel I-beams added to assist in the bridge’s demolition.
View on December 26, 2016 with steel I-beams added to assist in the bridge’s demolition.

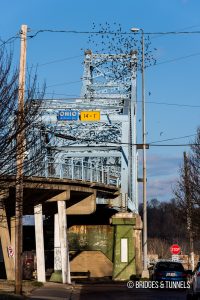

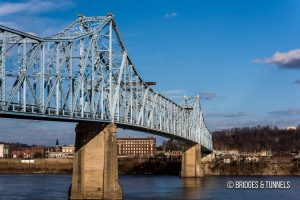

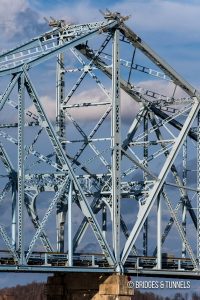

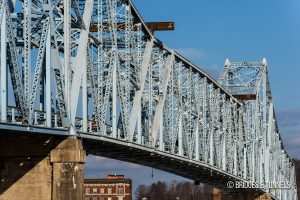

View on December 26, 2016
View on December 26, 2016
View on December 26, 2016`

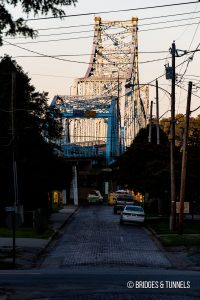

View on September 17, 2015

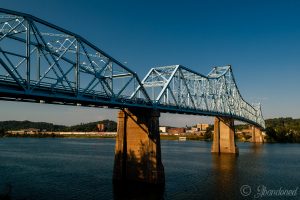

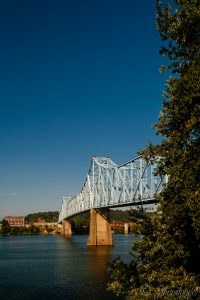

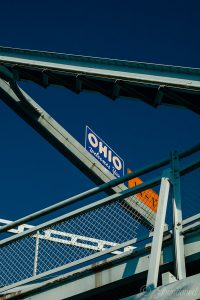

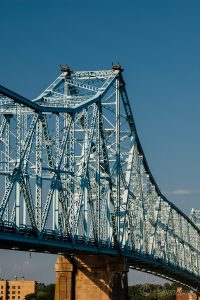

An evening view of the Ironton-Russell Bridge as seen in August 2007.
An evening view of the Ironton-Russell Bridge as seen in August 2007.
An evening view of the Ironton-Russell Bridge as seen in August 2007.
An evening view of the Ironton-Russell Bridge as seen in August 2007.
An evening view of the Ironton-Russell Bridge as seen in August 2007.
An evening view of the Ironton-Russell Bridge as seen in August 2007.
An evening view of the Ironton-Russell Bridge as seen in August 2007.

Details

  • State: Kentucky, Ohio
  • Route:
  • Status: Demolished (Replaced)
  • Type: Warren Through Truss
  • Total Length: 2,342 feet (1922)
  • Main Span Length: 518 feet
  • Spans:
  • Deck Width: 17.1 feet
  • Roadway Width: 0
  • Height of Structure: 0
  • Above Vertical Clearance: 21 feet
  • Navigational Clearance:
