Zanesville Railroad Bridge

Ohio

Built 1891, 1913
Total Length 756'
Main Span 85'
Status Active

The Muskingum River Bridge, part of the former Central Ohio Railroad, was twice rebuilt after collapses in 1866 and the 1913 flood in Zanesville, Ohio.

The Central Ohio Railroad was incorporated in 1847 to construct a railroad from Columbus through Newark and Zanesville to the Ohio River, with the option of extending westward to the Indiana state line. [5] In 1850, bonds were issued to finance the construction of the line. [4][5] The railroad opened between Zanesville and Newark on January 26, 1852, and reached Columbus in January 1853. It was completed east to Bellaire in November 1854. [1][5] Extending 137 miles, the line connected Columbus, the state capital, with the Ohio River. [2][3]

The first railroad bridge at Zanesville was a Bollman through truss. [2][3] Its superstructure was built by W. Smith & Company in a building later occupied by Wheeler Stevels & Company, a wholesale grocer. [5]

In November 1866, the Baltimore & Ohio Railroad acquired the Central Ohio Railroad and thereafter operated the route as its Central Ohio Division. [1][5]

Under B&O operating rules, only one train was supposed to occupy the bridge at a time. [2][3] On December 5, 1866, however, two westbound trains entered the single-track crossing at once: a passenger express and a yard tender train. About 25 people aboard the express were affected, and one person was killed.

A new Pratt truss bridge was built at Zanesville in 1891. [2][3] That span also included a sidewalk for pedestrians.

During the flood of March 1913, the bridge suffered catastrophic damage when spans 1, 2, and 3 collapsed on March 26 after being struck by floating buildings. [2][3][6] Floodwaters crested at 51.8 feet, far above the previous record of 36.8 feet set in 1898 and well above the 25-foot flood stage. [6] A temporary bridge was erected by the Seaboard Construction Company by April 13, but permanent replacements for spans 1, 2, and 3 were finished by late summer. [2][3][7] It consisted of three new Warren through truss spans over the river and a single-leaf bascule span constructed by the Strauss Bascule Bridge Company of Chicago, Illinois.

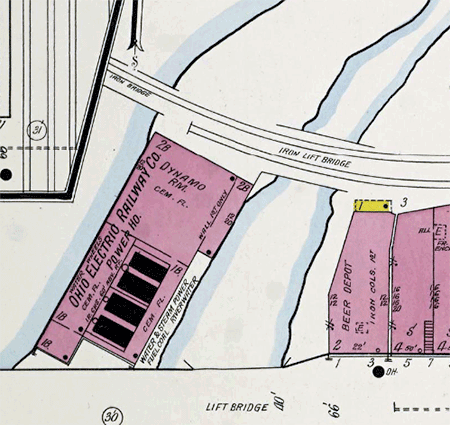

Zanesville Sanborn map
A 1919 Sanborn map shows the iron lift bridge over the canal, with the southern track serving the Ohio Electric Railway Company power plant. Source: Sanborn Fire Insurance Map, 1919.

In 1973, the Baltimore & Ohio Railroad was grouped with the Chesapeake & Ohio and Western Maryland railways under the Chessie System, although it continued to operate as a separate railroad. In 1983, the B&O abandoned the line between Cambridge and Bellaire, citing declining originating traffic. The surviving portion of the route, extending west from the Cambridge area to Columbus and including the Muskingum River bridge, is now operated by the Columbus & Ohio River Railroad as its Cambridge Subdivision.

Dimensions & Classification

Structural FormMovable — Bascule
Through Truss — Warren
Girder — Plate
Primary MaterialSteel
Total Length756'
Main Span85'
BuildersStrauss Bascule Bridge Co. (1913)

Leave a Comment

Spotted an error — a date, name, or fact? Send a correction and I'll review it.

References for this location, in MLA format.

Show all 7 sources
  1. “Central Ohio RR.” William G. Pomeroy Foundation, ↗
  2. Allen, Gary. “The History Behind the Picture.” Zanesville Video History Group, 9 Nov. 2017. ↗
  3. Carskadden, Jeff. Famous Railroad Bridges in Muskingum County. Muskingum Valley Archaeological Survey, 1984, 1984.
  4. “Muskingum County History Timeline.” The Times Recorder, 19 Feb. 2005, p. 7.
  5. “The Old Central Ohio.” Newark Daily Advocate, 18 Mar. 1899, p. 9.
  6. Schneider, Norris. “City's Worst Disaster Occurred in 1913.” The Times Recorder, 27 Mar. 1983.
  7. “Trains Are Now Running Across the New Baltimore and Ohio Railroad Bridge.” The Zanesville Signal, 14 Apr. 1913, p. 1.
