Gate House Bridge

New York

Built 1905
Total Length 527'
Main Span 396'
Status Active

The Gate House Bridge is a 1905 steel Parker through truss over the New Croton Reservoir at Yorktown Heights, New York, built with the New Croton Dam.

A bowstring arch of about 1852 crossed the Croton River just below the original Croton Dam, and when the New Croton Dam went up in the early twentieth century and the reservoir rose behind it, that crossing had to be replaced. The Gate House Bridge took its place, a steel Parker through truss with girder approaches carrying traffic between Croton Dam Road and Croton Lake Road at the site of the older dam. The contract was let in February 1903, with Coleman Breuchaud & Company building the substructure and the American Bridge Company the superstructure, and the work was finished by the end of 1905.

The Gate House Bridge carries a local connecting route over the New Croton Reservoir at Yorktown Heights, New York.

A three-span Whipple arch bowstring built about 1852 stood immediately downstream of the original Croton Dam. 2 The construction of the New Croton Dam in the early twentieth century required its replacement, and a steel Parker through truss with girder approaches was built over the reservoir to carry traffic between Croton Dam Road and Croton Lake Road at the site of the earlier dam.

The contract was let on February 24, 1903, the substructure to Coleman Breuchaud & Company and the superstructure to the American Bridge Company. 1 The bridge was finished by the end of 1905.

Gate House Bridge

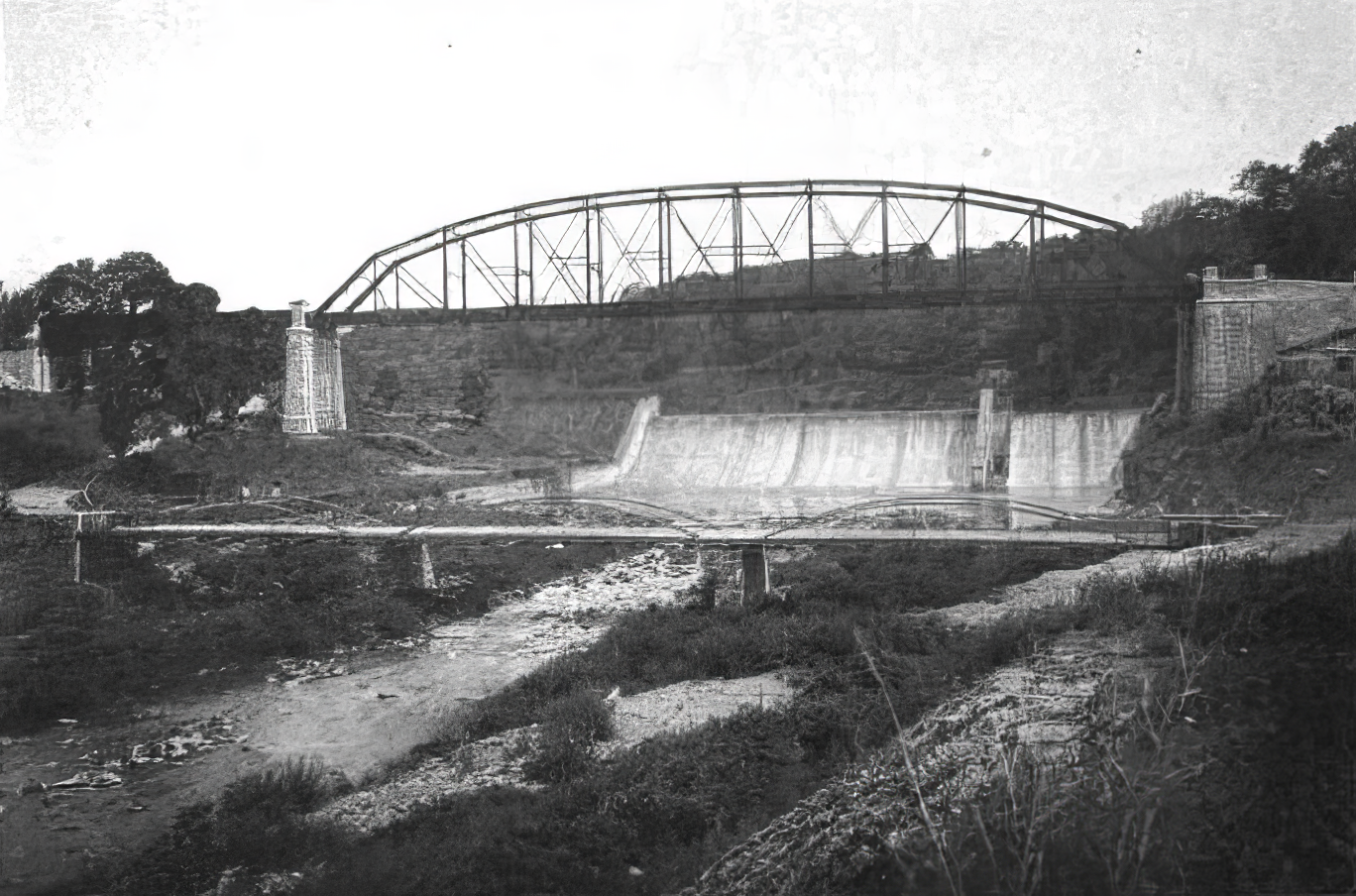

This is a view of the newly completed Gate House Bridge over the old Croton Dam. The original bridge over the Croton River, later submerged after the New Croton Dam was completed, is in the foreground.

Dimensions & Classification

Structural FormThrough Truss — Parker
Primary MaterialSteel
Total Length527'
Main Span396'
Deck Width20'3"
Vertical Clearance12'3"
BuildersAmerican Bridge Co. (superstructure)
Coleman Breuchaud & Co. (substructure)

Leave a Comment

Spotted an error — a date, name, or fact? Send a correction and I'll review it.

References for this location, in MLA format.

  1. New Highway Bridges at New Croton Reservoir. Report to the Aqueduct Commissioners, 31 Dec. 1906, pp. 12, 55-56, 105. ↗
  2. Holth, Nathan. “Gate House Bridge.” HistoricBridges.org, 30 Aug. 2019. ↗
